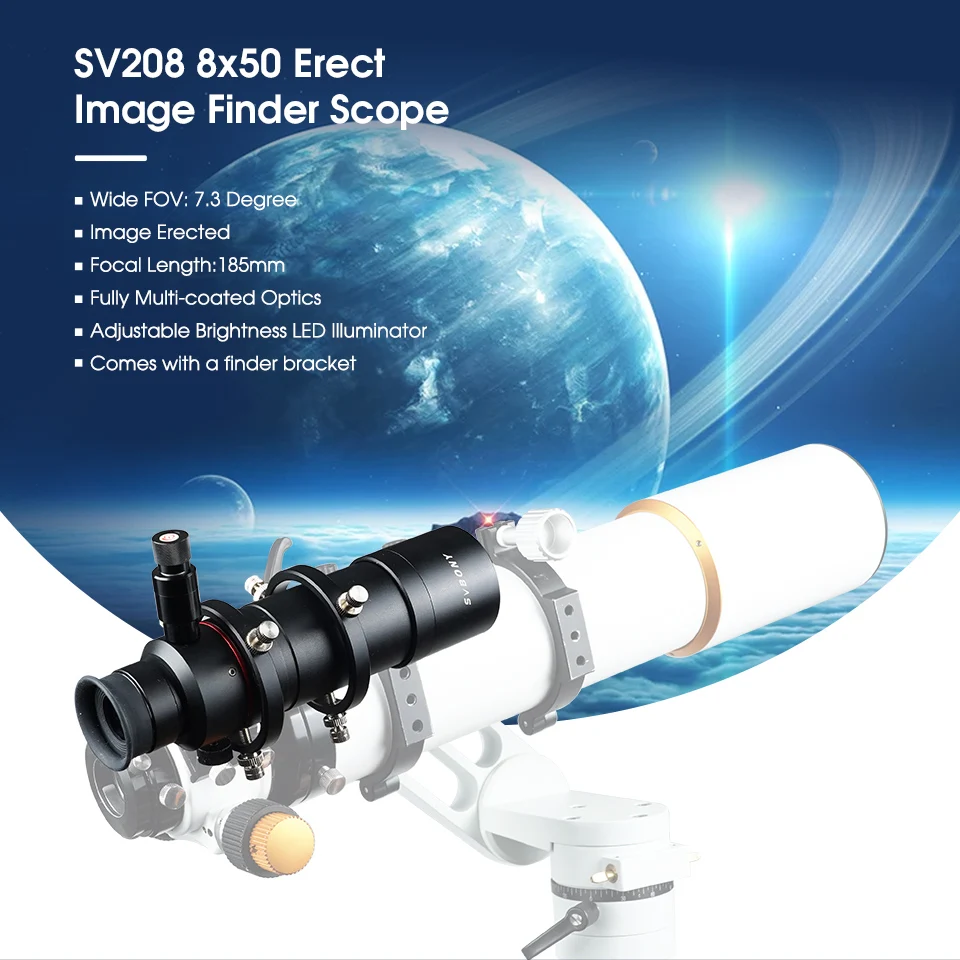

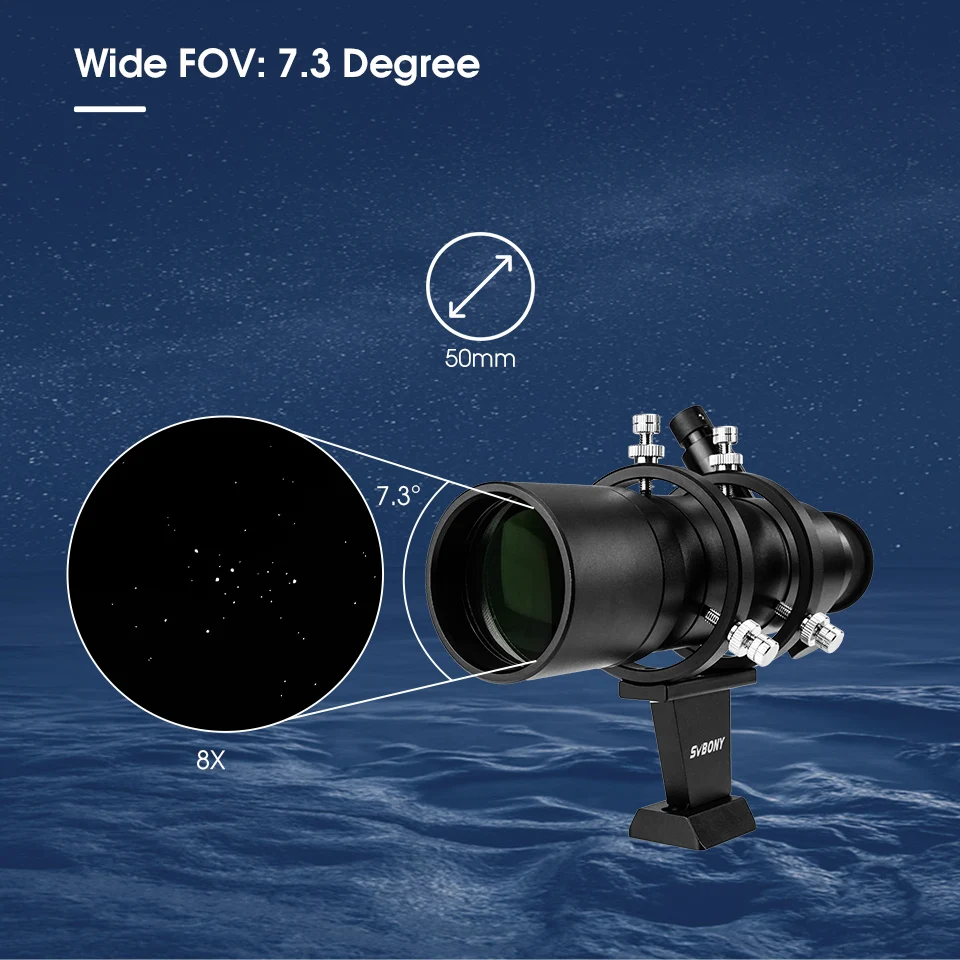

Wide FOV: 7.3 Degree

This finder scope has a 50mm aperture, and so provides a particularly bright image.
The objects that you are not able to see with naked eyes will show in the aperture.
The 7.3°FOV, 21mm long eye-relief eyepiece produces a bright 6.25mm exit pupil and will allow you to find faint galaxies, comets, and nebulae.

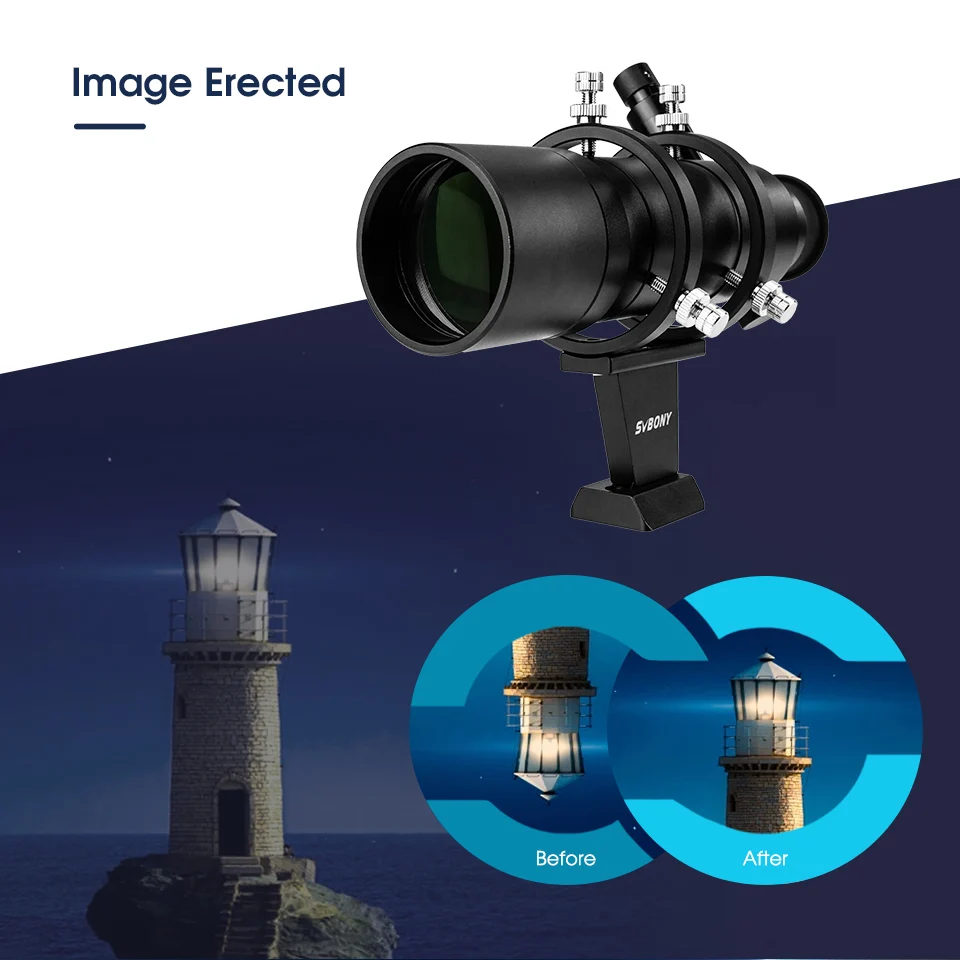

Image Erected

The finder scope produces images that are right-side-up, left-to-right correct. In other words, things are not upside-down and backwards like most viewfinders.

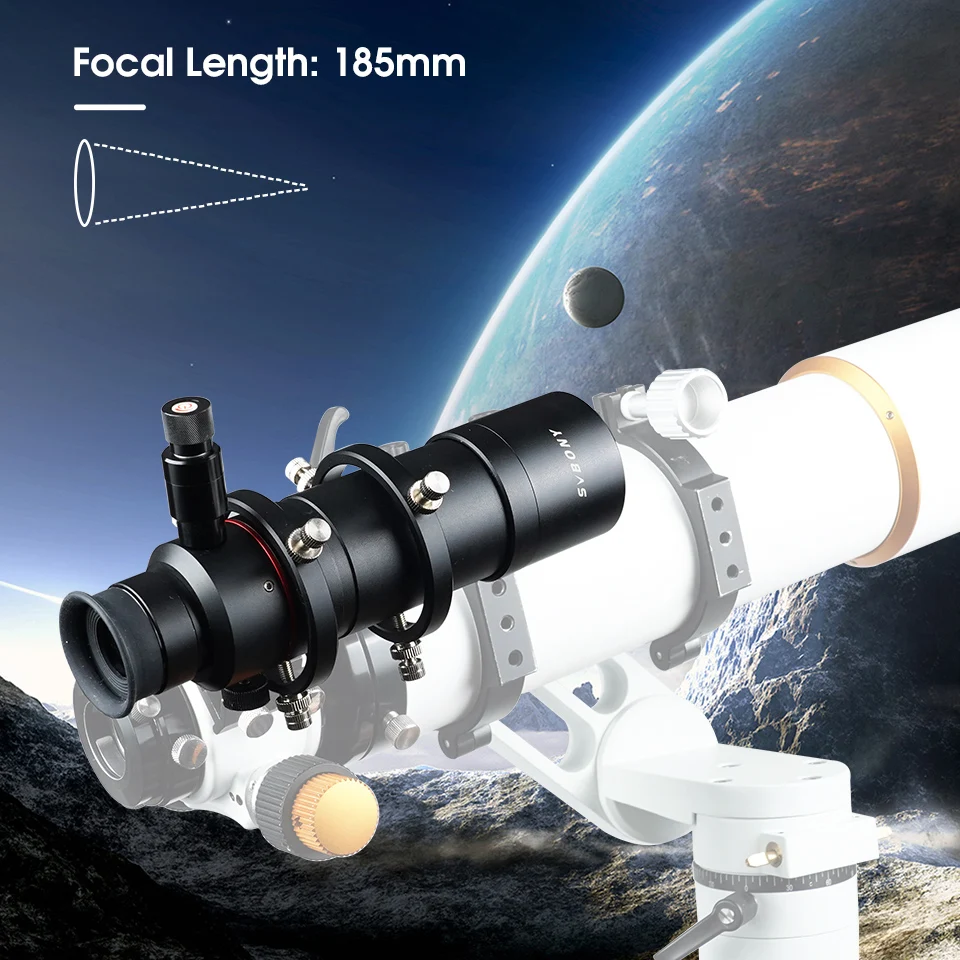

Focal Length: 185mm

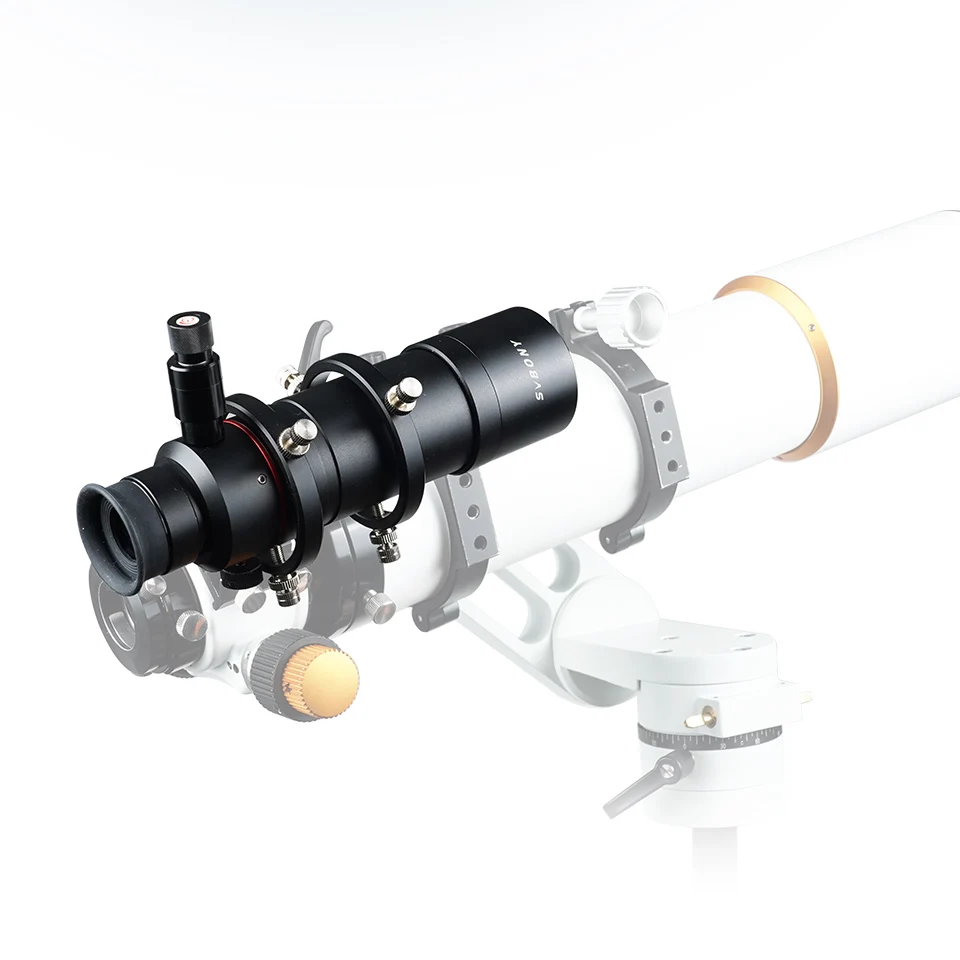

The 185mm focal length finder scope is designed for use with astronomy telescopes up to 2000mm focal length. Fit perfect with Dobsonian telescopes and Schmidt-Cassegrain telescopes. Also fit perfect with our SVBONYT SV503 telescope.

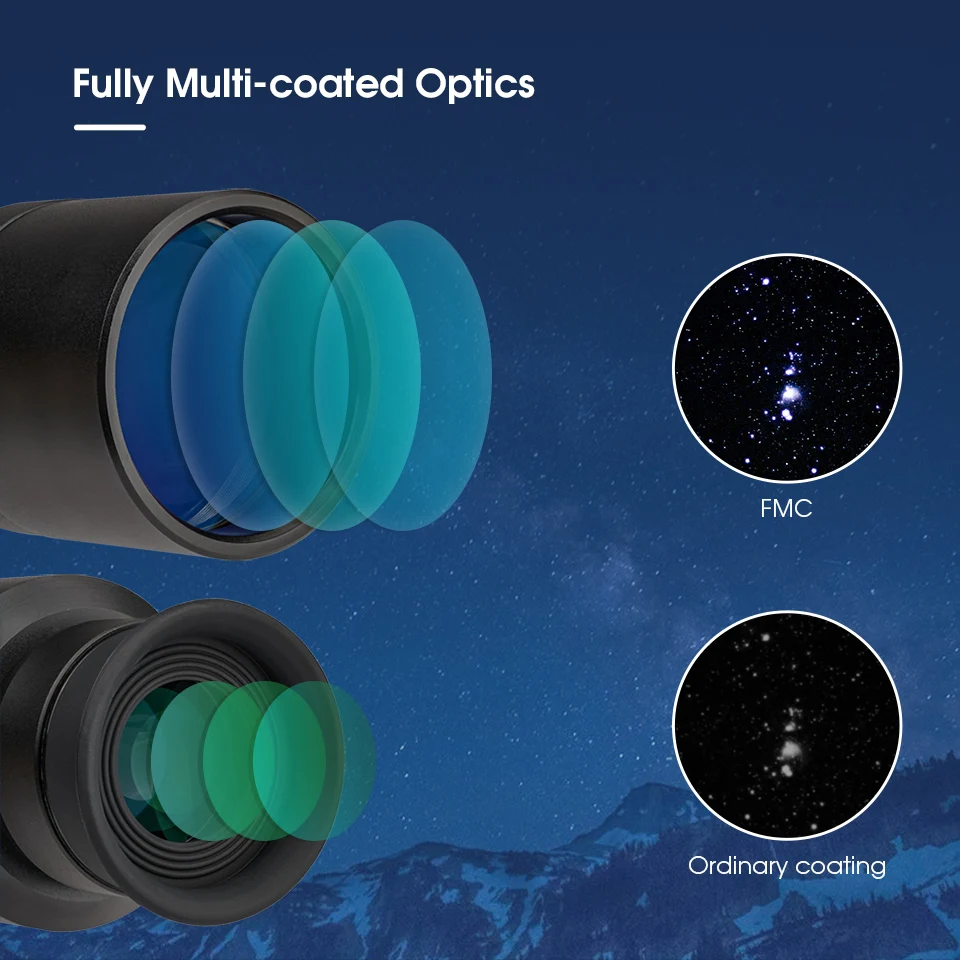

Fully Multi-coated Optics

Fully multi-coated Glass means all lens surfaces and all air-to-glass surfaces are anti-reflective multi-layer coated. The 50mm FMC lens increases the light transmission and benefits for finding targets in the night sky.

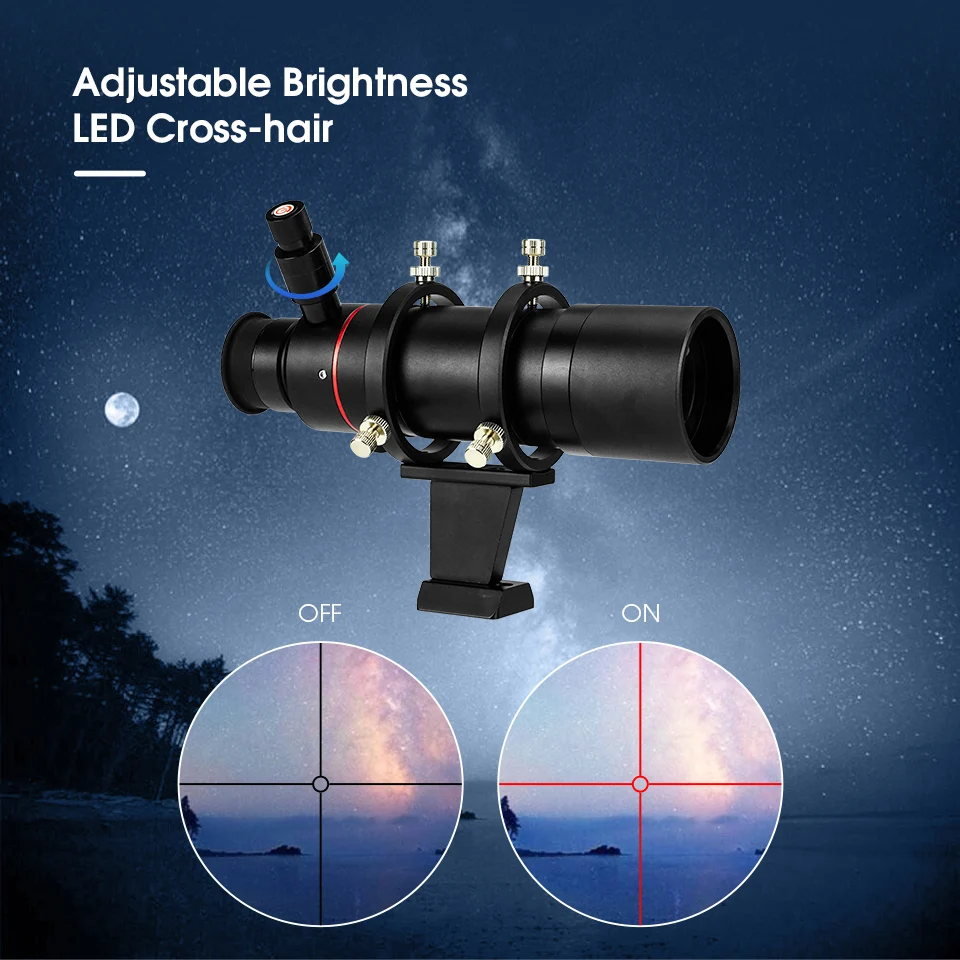

Adjustable Brightness LED Cross-hair

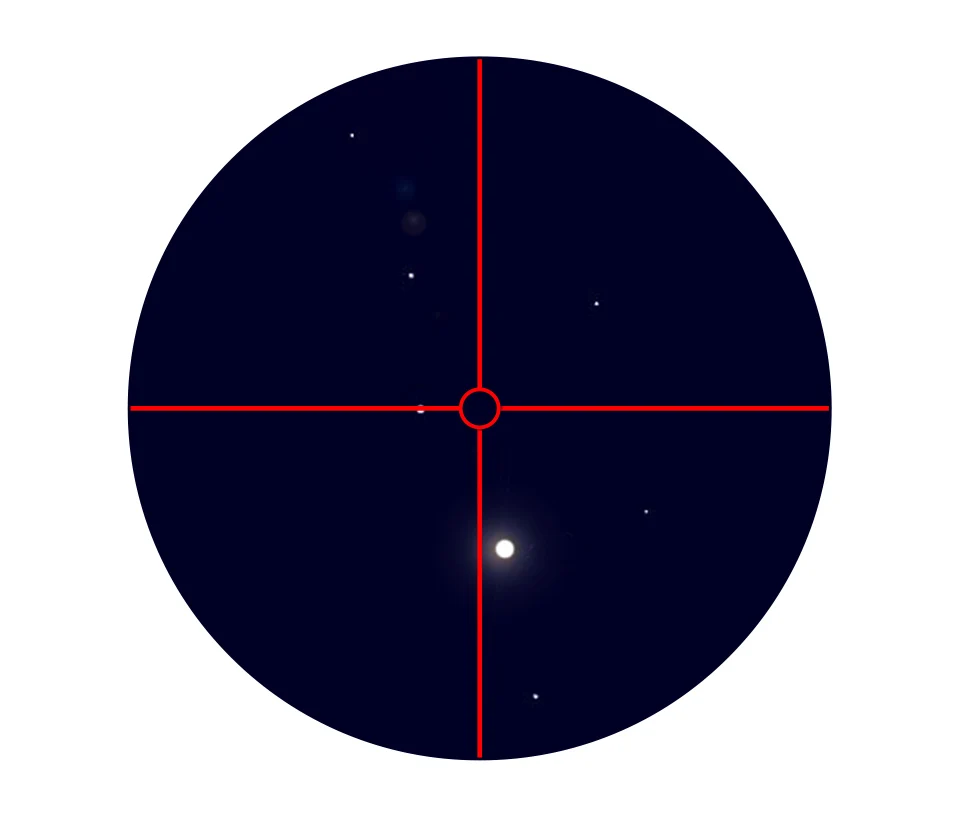

The straight-through finder has a precision glass-etched illuminated reticle with cross-hair to mark the field boundaries and an open circle in the middle so that stars can be perfectly centered without being covered. The deep red illumination is continuously variable to provide the desired brightness.
Compared with traditional brass cross-hair, the glass-etched reticle has a great improvement in precision and lifespan.

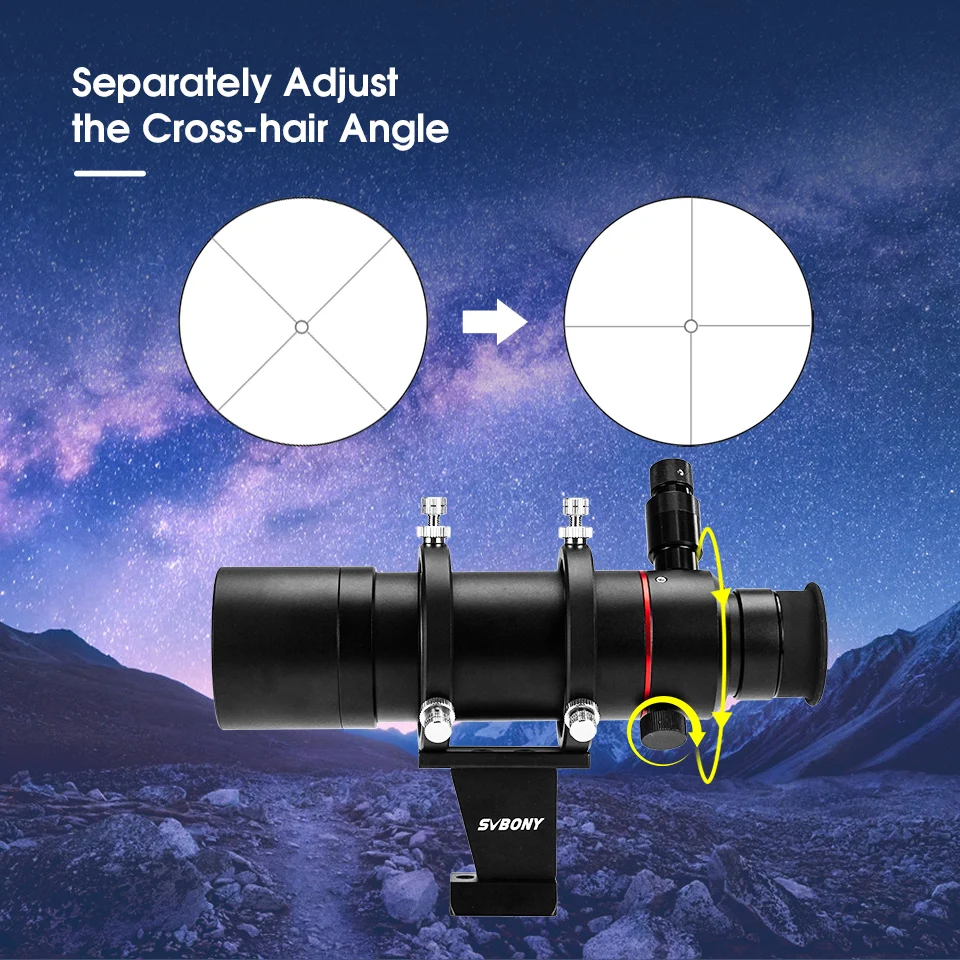

Separately Adjust the Cross-hair Angle

The angle of cross-hair is available to be adjusted separately. After aligning the finder scope, if you notice the cross-hair is at the wrong angle, then loose the knob and rotate the front part of the scope to correct the reticle instead of adjusting the whole finder scope.

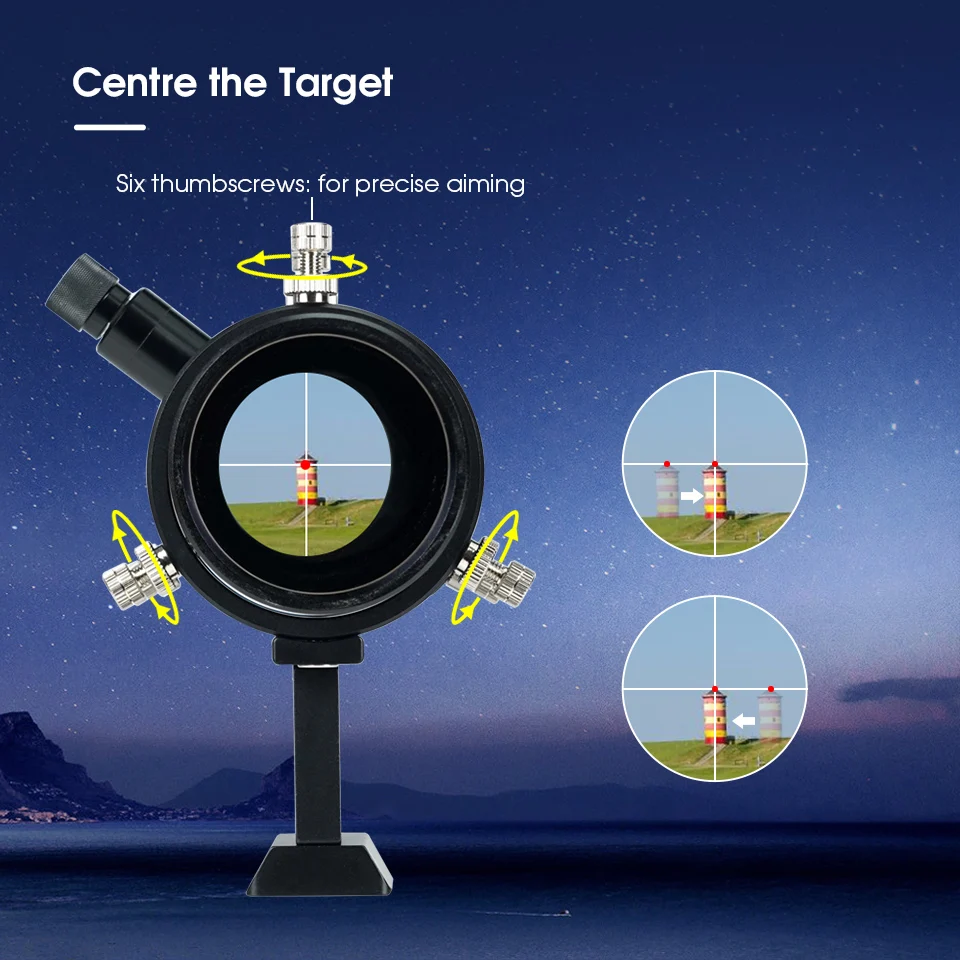

Centre the Target

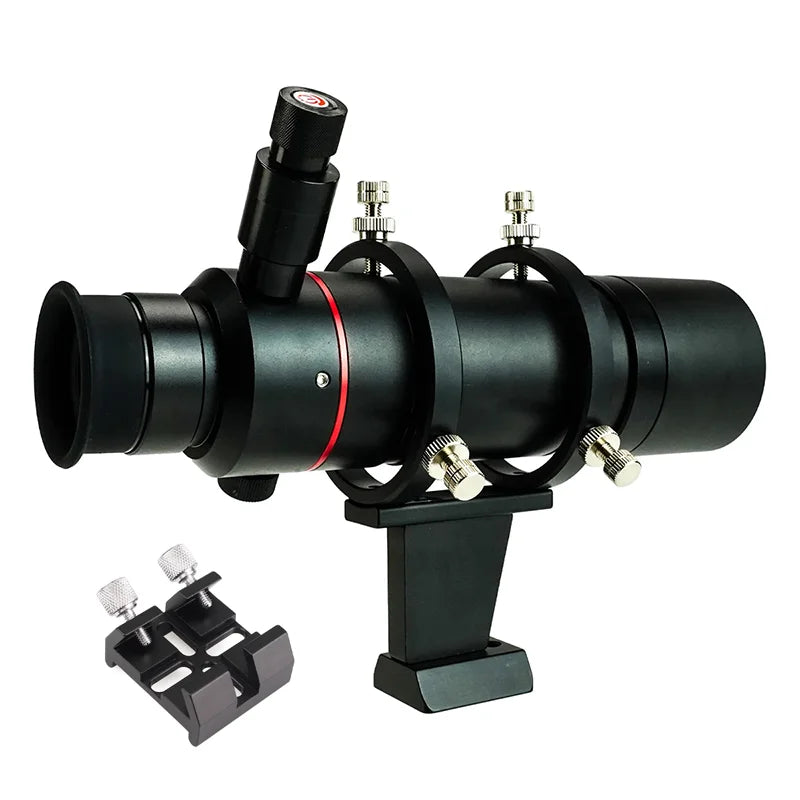

The finder comes with a finder bracket, which is with 6 large adjustment screws and knurled head, easy to grip, and adjusting and clamping screws have plastic tips. After aligning your finder scope, you will find the object that in the center of your finder scope aperture shows in the center on your telescope aperture. Please note that no finder base is included.

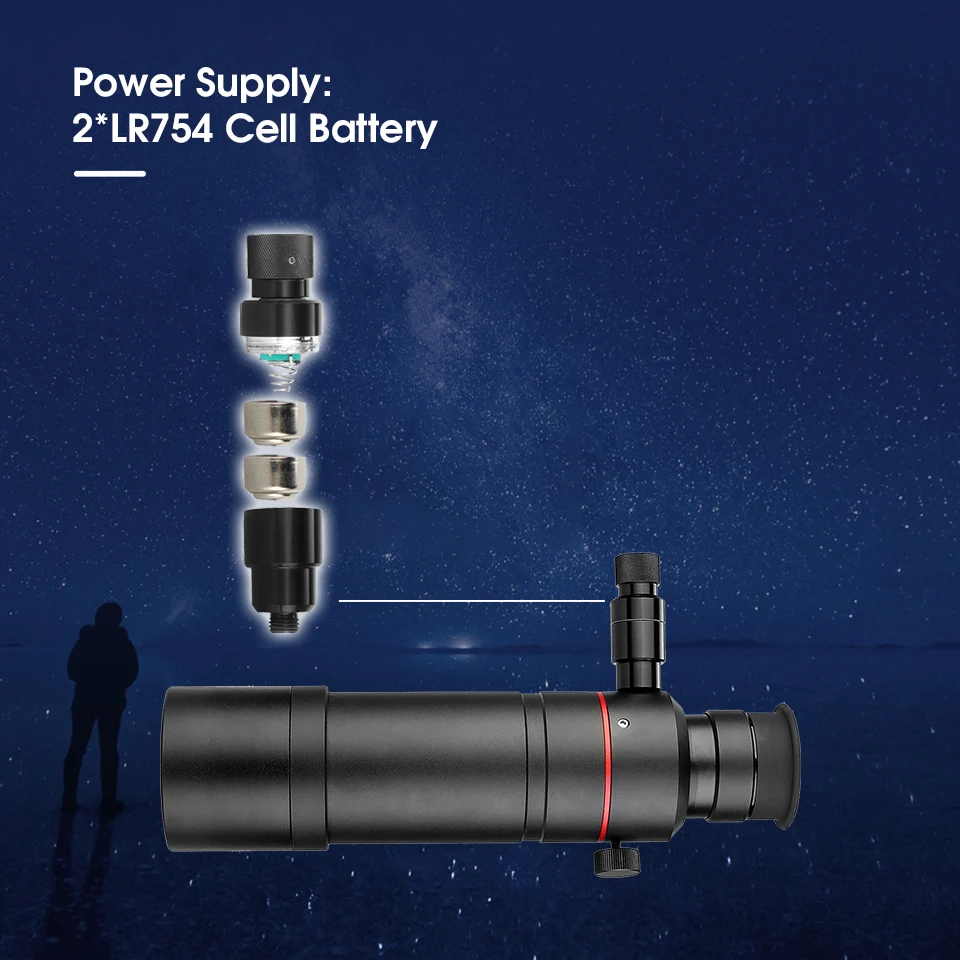

Power Supply: 2*LR754 Cell Battery

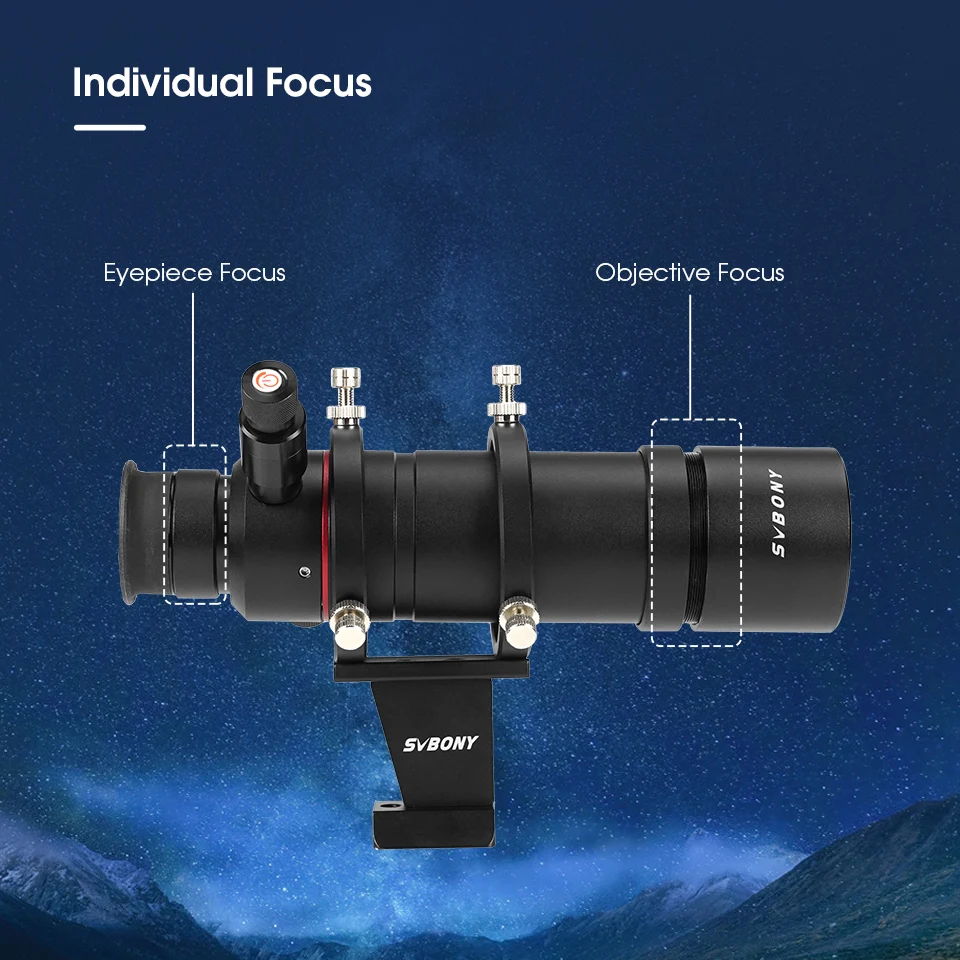

Indixidual Focus

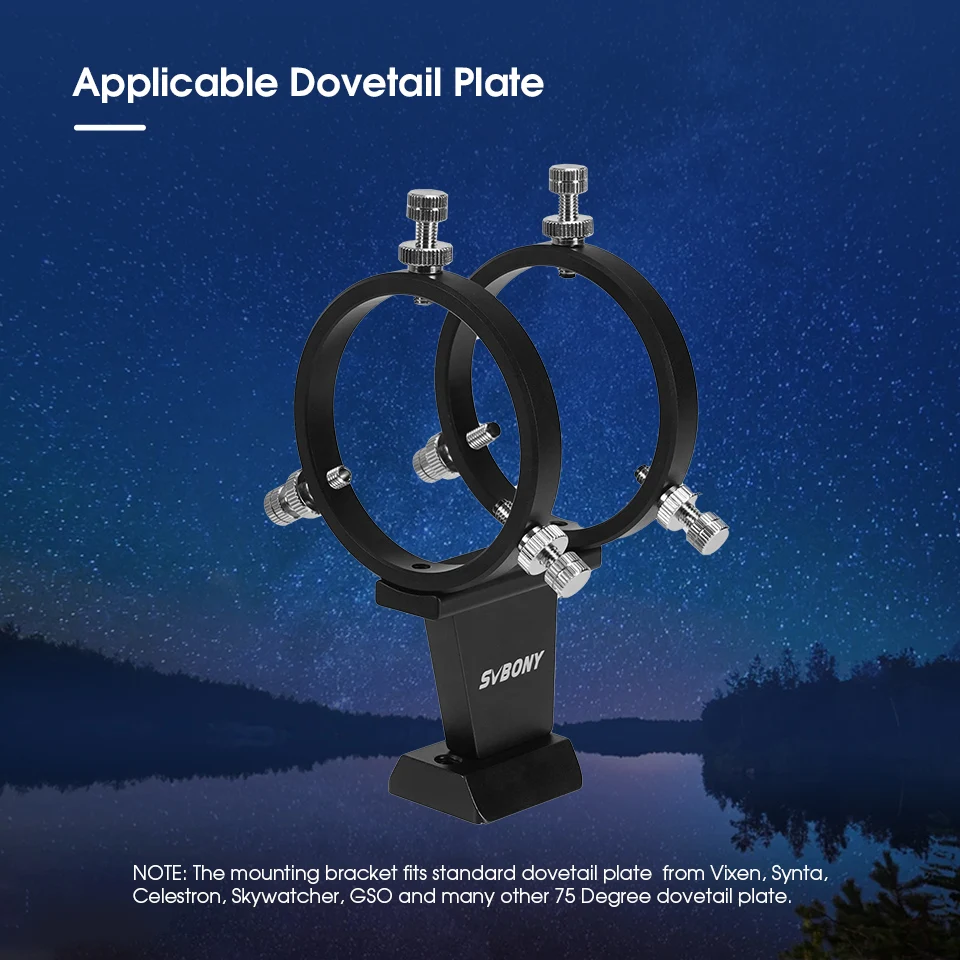

Applicable Dovetail Plate

（NOTE:） The mounting bracket fits standard dovetail plate from Vixen, Synta, Celestron, Skywatcher, GSO and many others 75 Degree dovetail plate.

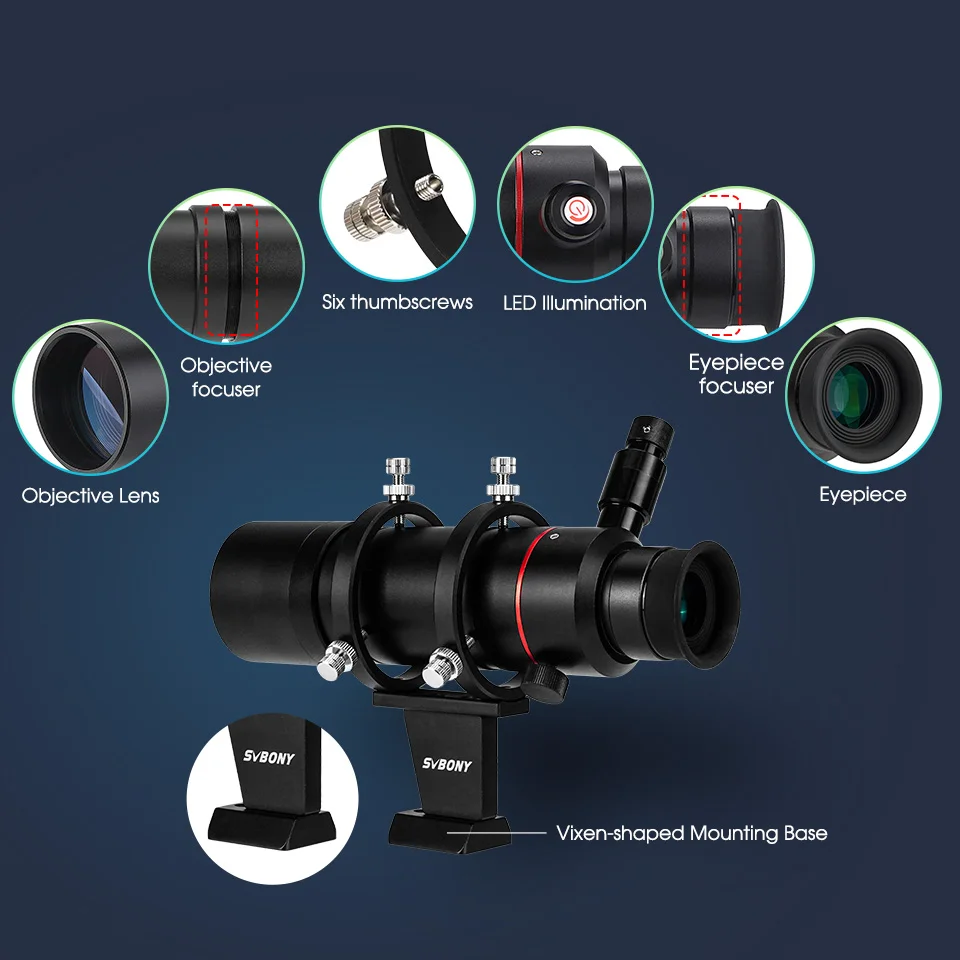

Product details

Objective lens
Objective focuser
Nylon Thumbscrews
LED Illumination led
Eyepiece focuser
Eyepiece
V-shaped mounting base

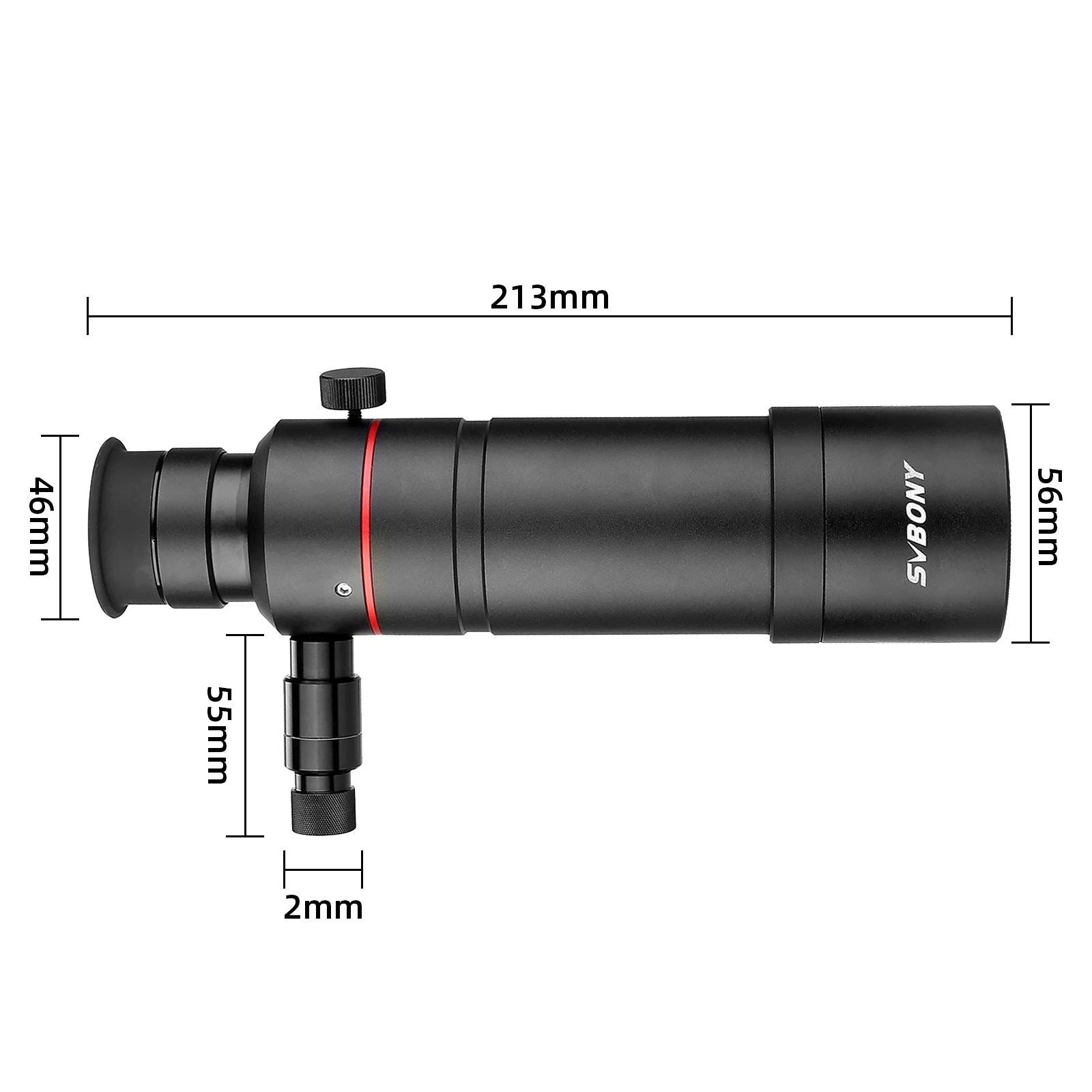

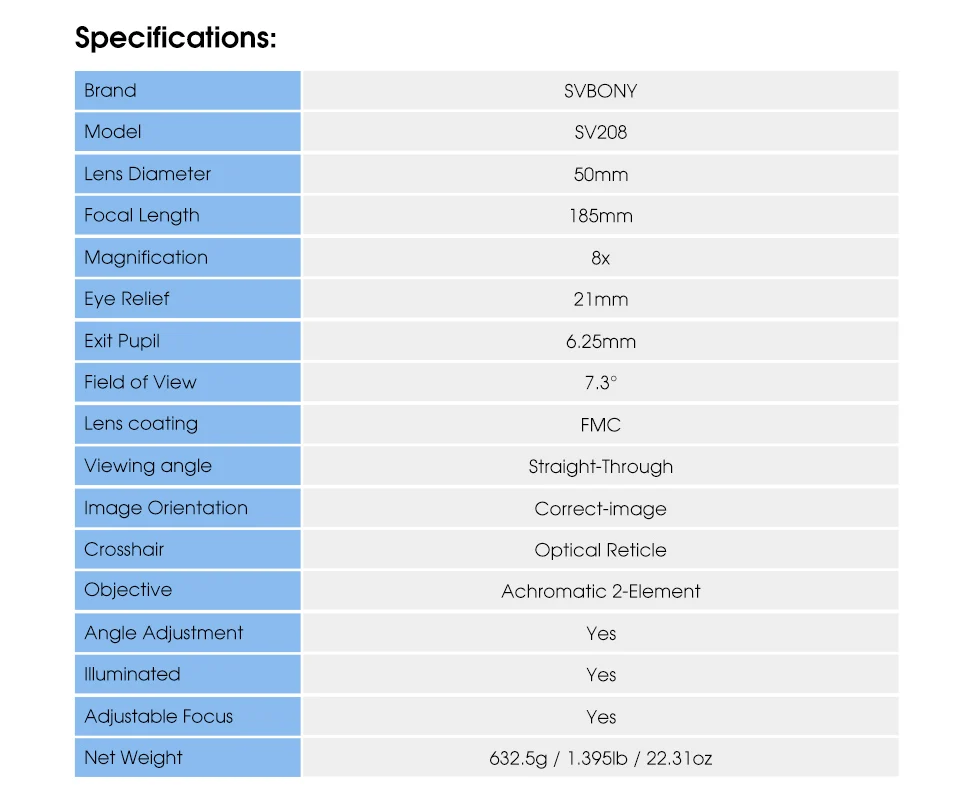

Specification:

1.Brand: SVBONY
2.Model: SV208
3.Lens Diameter: 50 mm
4.Focal Length: 185mm
5.Magnification: 8x
6.Eye Relief: 21mm
7.Exit Pupil: 6.25mm
8.Field of View: 7.3°
9.Lens coating: FMC
10.Viewing angle: Straight-Through
11.Image Orientation: Correct-image
12.Crosshair: Optical Reticle
13.Objective: Achromatic 2-Element
14.Angle Adjustment : Yes
15.Illuminated: Yes
16.Adjustable Focus: Yes
17.Net Weight: 632.5g / 1.395lb / 22.31oz

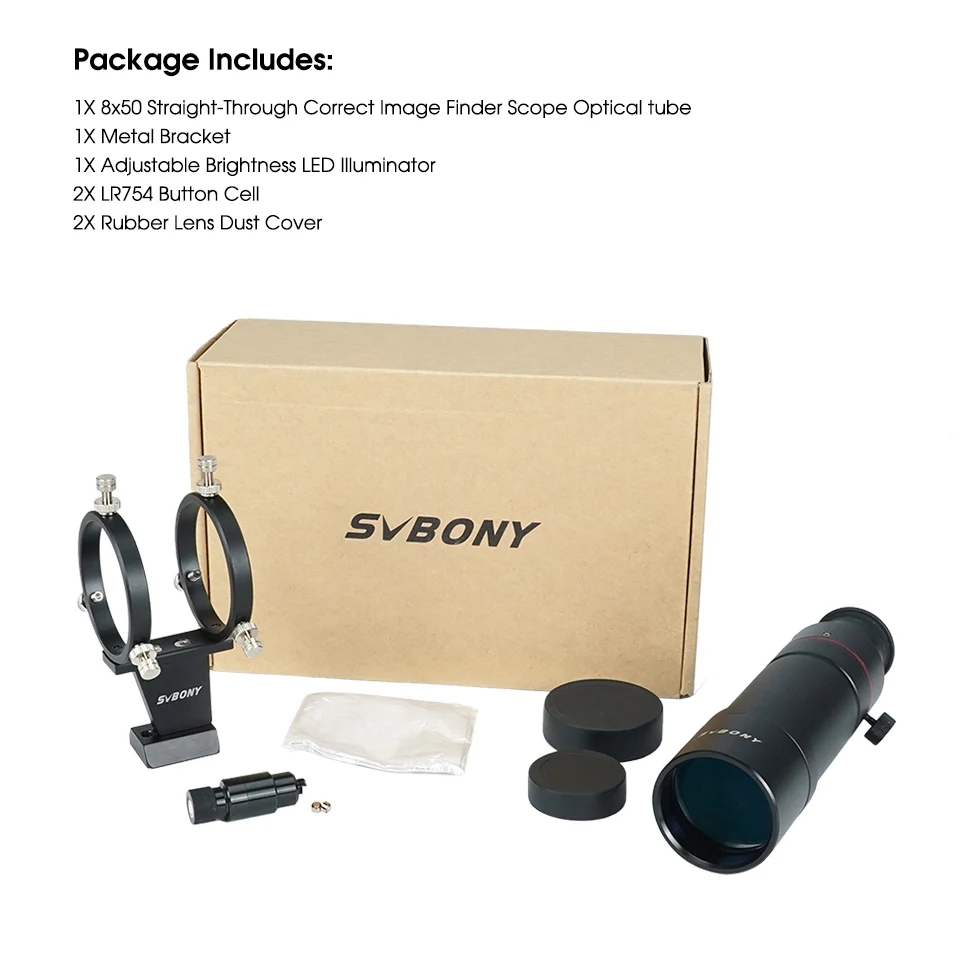

Package Details：

1X 8x50 Straight-Through Correct Image Finder Scope Optical tube
1X Metal Bracket
1X Adjustable Brightness LED Illuminator
2X LR754 Button Cell
2X Rubber Lens Dust Cover
